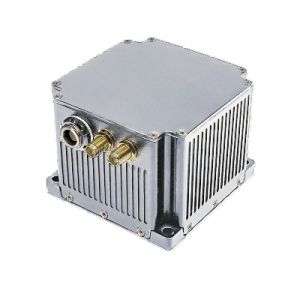

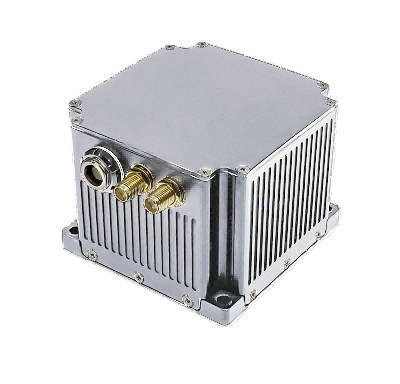

AHRS System (Merak-H01)
Our high-accuracy AHRS combines optical gyro (FOG/RLG) and accelerometer (quartz/MEMS) technologies in an advanced strapdown architecture. The system delivers reliable 3D orientation data through GNSS-coupled or pure inertial modes, suitable for: • Defense platforms • Robotics and automation • Vehicle navigation • Marine systems • Precision industrial equipment.
Operational advantages:
1) Uninterrupted performance without GNSS;
2) Flexible data output options;
3) Unlimited geographical operation;
4) Continuous operation reliability.
| Series | Attitude and Heading Reference Systems(AHRS) | ||
| Type | Merak-H01 | ||
| Accelerometer | Months Bias Repeatability(1σ) | ≤500μg | |
| Months Scale Factor Accuracy(1σ) | ≤500ppm | ||
| Gyro | Bias Repeatability(1σ) | ≤0.1°/hr | |
| Scale Factor Accuracy(1σ) | ≤300ppm | ||
| Random walk(1σ) | ≤0.03°/√hr | ||
| Features | Angular Rate | ≥±400°/sec | |
| Angular Acceleration | 100000°/sec2 | ||
| Acceleration | ＞40g | ||
| Angular Attitude | Any Orientation | ||
| Startup time | 10 sec | ||
| Input/output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port | ||
| Alignment time | ＜10min | ||
| AHRS Applications Performance | Heading Accuracy | Pure inertia | ≤1.0°secL+0.2°/h,RMS |
| INS/Single-antenna GNSS combination | ≤0.5°,RMS | ||
| INS/Dual-antenna GNSS combination | ≤0.1°,RMS | ||
| Pitch & Roll Accuracy | Pure inertia | ≤0.15°,RMS | |
| INS/GNSS combination | ≤0.1°,RMS | ||
| Characteristics | Power consumption | ＜10W | |
| Dimensions | 70×70×53mm | ||
| Weight | ＜500g | ||
| Temperature | -40℃~60℃ | ||
| Shock | 15g,Half-sine wave 11ms | ||
| Input Voltage | DC24V(±25%) | ||
| cooling | Conduction to mounting plate | ||
| Vibration | 20~2000Hz,6.06g | ||
| MTBF | ＞20000 hours | ||
|
|
