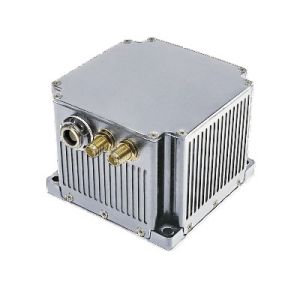

AHRS System (Merak-H1)
The Attitude and Heading Reference System (AHRS) employs fiber optic gyros (FOG) or ring laser gyros (RLG) coupled with quartz or MEMS accelerometers in a strapdown inertial architecture. Incorporating advanced navigation algorithms for real-time processing, the system delivers high-precision attitude and heading information through multiple operational modes including GNSS-aided and standalone inertial navigation. Applications include military platforms (radar, optical, acoustic, artillery), robotics, land/sea vehicles, submersibles, and industrial equipment. Key features:
1) Autonomous operation in GNSS-denied environments;
2) Output of both processed navigation data and raw inertial measurements;
3) Worldwide deployment capability;
4) High reliability design.
| Series | Attitude and Heading Reference Systems(AHRS) | ||
| Type | Merak-H1 | ||
| Accelerometer | Months Bias Repeatability(1σ) | ≤30μg | |
| Months Scale Factor Accuracy(1σ) | ≤30ppm | ||
| Gyro | Bias Repeatability(1σ) | ≤0.005°/hr,1σ | |
| Scale Factor Accuracy(1σ) | ≤20ppm | ||
| Random walk(1σ) | ≤0.002°/√hr | ||
| Features | Angular Rate | ≥±400°/sec | |
| Angular Acceleration | 100000°/sec2 | ||
| Acceleration | ＞25g | ||
| Angular Attitude | Any Orientation | ||
| Startup time | 10 sec | ||
| Input/output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port | ||
| Alignment time | ＜10min | ||
| AHRS Applications Performance | Heading Accuracy | Pure inertia | ≤0.05°secL+0.01°/h,RMS |
| Single-antenna GNSS combination | ≤0.02°,RMS | ||
| Dual-antenna GNSS combination | ≤0.02°,RMS | ||
| Pitch & Roll Accuracy | Pure inertia | ≤0.02°,RMS | |
| INS/GNSS combination | ≤0.01°,RMS | ||
| Characteristics | Power consumption | ＜15W | |
| Dimensions | 161×153×123mm | ||
| Weight | <3.5kg | ||
| Temperature | -40℃~60℃ | ||
| Shock | 15g,Half-sine wave 11ms | ||
| Input Voltage | DC24V(±25%) | ||
| cooling | Conduction to mounting plate | ||
| Vibration | 20~2000Hz,6.06g | ||
| MTBF | ＞20000 hours | ||
|
|
